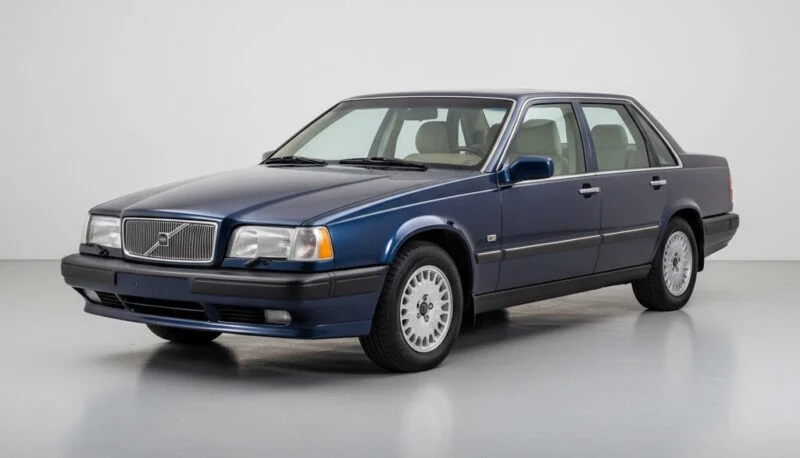

Volvo S90 (1997-1998) specifications
The Volvo S90 was a luxury sedan produced from 1997 to 1998, essentially a rebadged version of the Volvo 960 with minor updates such as new colors and features. It was available primarily with a 2.9L inline-6 engine, rear-wheel drive, and focused on safety and comfort. Below is a comprehensive table compiling specifications from multiple reliable sources. Where variations exist (e.g., due to market differences or trims like standard vs. Executive/Royal), they are noted.
| Category | Subcategory | Details |
|---|---|---|
| General Information | Model Years | 1997-1998 |
| Body Style | 4-door sedan (S90); related estate as V90 | |
| Production Volume | 26,269 units (S90) | |
| Powertrain Architecture | Internal Combustion Engine (ICE), Rear-Wheel Drive (RWD) | |
| Seating Capacity | 5 seats | |
| Engine Details | Engine Type | 2.9L (2,922 cc) Inline-6, DOHC, 24-valve, naturally aspirated gasoline |
| Alternative Displacement | 2.5L (2,473 cc) Inline-6 available in some markets | |
| Horsepower | 181 hp @ 5,200 rpm (US/standard trim); 201-204 hp @ 6,000 rpm (Executive/European trims) | |
| Torque | 199 lb-ft @ 5,200 rpm (standard); 197 lb-ft @ 4,300 rpm (Executive) | |
| Engine Code | B6304S / B6304S2 / B6304FS2 / B6304F | |
| Bore x Stroke | 3.268 x 3.543 in | |
| Compression Ratio | 10.7:1 | |
| Fuel Injection | Multi-point | |
| Engine Oil Capacity | 5.8 L (6.13 US qt) | |
| Coolant Capacity | 8.5 L (8.98 US qt) | |
| Door Count | 4 doors | |
| Transmission | Type | 4-speed automatic (standard, Aisin AW-series); 5-speed manual (optional in Europe) |
| Performance | Top Speed | 130 mph (210 km/h) |
| 0-60 mph | 8.6-8.8 seconds (calculated); 0-62 mph: 9.1 seconds | |
| Power-to-Weight Ratio | 18.19-18.65 lb/hp | |
| Fuel Economy | City / Highway / Combined (US MPG) | 18 / 26 / 21 (standard); Combined: 19.9 mpg (Executive) |
| Urban / Extra Urban / Combined (L/100 km) | 16.5 / 8.4 / 11.4 | |
| Total Range | 420 miles (Executive) | |
| Fuel Tank Capacity | 21 gal (80 L) | |
| Dimensions | Length | 191.7-197.7 in (487-487.1 cm) |
| Width | 68.9 in (175-176 cm) | |
| Height | 55.98-56.6 in (142.2-143.8 cm) | |
| Wheelbase | 109.1 in (277 cm) standard; 115 in (292.1 cm) for Executive/Royal LWB | |
| Front / Rear Track | 59.1 in / 59.1 in (Executive) | |
| Turning Diameter | 31.8 ft | |
| Weights and Capacities | Curb Weight | 3,461-3,748 lbs (1,560-1,604 kg) |
| Gross Weight | 4,630 lbs (Executive) | |
| Maximum Payload | 882 lbs (Executive) | |
| Towing Capacity | 3,968 lbs (Executive) | |
| Fuel Tank Capacity | 21 gal (80 L) | |
| Cargo Volume | 16.6-21.3 cu ft (trunk); EPA Total Interior: 106.9 cu ft | |
| Chassis and Suspension | Front Suspension | MacPherson Strut |
| Rear Suspension | Multi-Link | |
| Brakes | Hydraulic all-round disc brakes; Front: Vented Disc, Rear: Solid Disc | |
| Tire Size | 205/55R15 | |
| Safety Features | Airbags | Dual front airbags |
| Braking System | ABS (Anti-lock Braking System) | |
| Child Safety | Child seat anchors, child door locks, integrated rear child booster seat (optional/high-trim) | |
| Other | Daytime running lights (North America), seat-belt pretensioners | |
| Interior Features | Seating | Leather seats, dual power front seats, power driver’s seat, improved ergonomic seats |
| Comfort/Convenience | Power windows, tilt steering wheel, cruise control, improved air conditioning | |
| Audio/Tech | AM/FM radio, cassette player; Navigation and hands-free phone (optional) | |
| Dimensions | Front Head Room: 37.4 in; Front Leg Room: 41 in; Front Shoulder Room: 54.5 in | |
| Colors | New interior colors introduced (specifics vary by market) | |
| Exterior Features | Wheels | Alloy wheels (standard) |
| Other | Rear spoiler (optional), painted mirrors and bumpers, updated grille from 960 facelift | |
| Colors | New exterior colors introduced (specifics vary by market) | |
| Additional Notes | Market Variations | Specifications may vary by country; features could be optional or altered without notice. US models typically had automatic transmission and lower power output. Executive/Royal trims offered LWB and higher power. |
| Discontinuation | Production ended in 1998 |
The Volvo S90, produced briefly from 1997 to 1998, represents a pivotal chapter in Volvo’s storied history of building safe, reliable, and understated luxury vehicles. As a rebadged and mildly updated version of the Volvo 960, the S90 was Volvo’s flagship sedan during its short run, embodying the brand’s commitment to engineering excellence, safety, and comfort. Though its production was limited—totaling around 26,000 units—it left a lasting impression on owners who prized its durability and refined driving manners.
History and development
The Volvo S90 traces its roots back to the Volvo 900 Series, which evolved from the 700 Series introduced in the late 1970s. The 900 Series, encompassing models like the 940, 960, S90, and V90 (estate variant), was manufactured from 1990 to 1998 and marked a significant technical transition for Volvo. This era saw Volvo refine its rear-wheel-drive (RWD) platforms, focusing on modular designs that improved build quality and adaptability for future models.
The direct predecessor to the S90 was the Volvo 960, launched in 1990 as an upscale evolution of the 760. The 960 received a major facelift for the 1995 model year, including a redesigned front suspension, a multi-link independent rear suspension, and the introduction of Volvo’s modular inline-six engines.
By late 1996, Volvo rebranded the 960 sedan as the S90 (and the estate as V90) to align with its new alphanumeric naming convention, already in use for models like the S40 and S70. This change was rolled out in Europe in 1996, North America for the 1997 model year, and Australia in March 1997.
Production of the S90 took place in Gothenburg, Sweden, with a total of 112,710 sedans and 41,619 estates built across the 960/S90/V90 lineup from 1995 to 1998. The S90 was offered in various trims, including standard and Executive (long-wheelbase) versions, with the latter providing extra rear legroom for chauffeured luxury. Notably, the S90 marked the end of Volvo’s traditional RWD executive cars, as the brand shifted to front-wheel-drive platforms with the S80 in 1999. The nameplate lay dormant until 2016, when Volvo revived it for a new generation of flagship sedans, paying homage to the original’s legacy.
This short production run was influenced by Volvo’s strategic pivot toward more modern, fuel-efficient designs amid changing market demands and emissions regulations. Despite its brevity, the S90 encapsulated Volvo’s 1990s ethos: prioritizing safety and longevity over flashy performance.
Design and features
The S90’s design was evolutionary rather than revolutionary, retaining the boxy, aerodynamic silhouette of the 960 while incorporating subtle updates for a more premium feel. Exterior changes included a revised grille, painted mirrors and bumpers, and new color options. Measuring about 192 inches long (up to 198 inches in Executive trim) with a 109-inch wheelbase (115 inches extended), it offered ample space for five passengers.
Inside, the S90 emphasized Scandinavian minimalism and ergonomics. Leather seats, power-adjustable front seats, and wood trim created a serene cabin environment. Features like automatic climate control, cruise control, and an AM/FM cassette stereo were standard, with options including navigation and a hands-free phone system—advanced for the era. The trunk provided 17-21 cubic feet of cargo space, making it practical for family use or long trips.
Owners often praise the interior’s durability and comfort, noting the “understated elegance” and high-quality materials that have aged well. However, some criticize the dated infotainment by modern standards, though it was reliable and user-friendly at the time.
Performance and driving experience
At the heart of the S90 was a 2.9-liter inline-six engine (B6304 series), delivering 181-204 horsepower and around 199 lb-ft of torque, depending on the market and trim. A 2.5-liter variant was available in some regions for better efficiency. Paired with a 4-speed automatic transmission (Aisin AW-series) as standard in the U.S.—or a 5-speed manual in Europe—the S90 achieved 0-60 mph in about 8.6-9.1 seconds and a top speed of 130 mph.
Driving dynamics were a highlight: the MacPherson strut front and multi-link rear suspension provided a smooth ride with competent handling, even on icy roads—a nod to Volvo’s Swedish heritage. Fuel economy was respectable for a luxury sedan, with EPA ratings of 18/26 mpg city/highway. Owners describe it as “quiet and user-friendly,” with a “strong and indestructible” engine that excels in low-rpm torque for effortless cruising.
In user reviews, the S90 scores highly for comfort on long drives, with many noting its “wafting” quality—smooth, composed, and fatigue-free. It’s not a sports sedan, but its RWD layout offers balanced handling compared to front-drive competitors like the Mercedes E-Class or BMW 5-Series of the era.
Safety innovations
Volvo’s reputation for safety shone through in the S90. Standard features included dual front airbags, ABS brakes, seat-belt pretensioners, and daytime running lights (in North America). Optional child safety integrations, like rear booster seats, added family-friendly appeal. The sturdy chassis and energy-absorbing design contributed to its robust crash protection, though formal ratings from the time (pre-modern NHTSA/IIHS standards) aren’t directly comparable.
Owners frequently highlight safety as a key reason for ownership, with one reviewer calling it “the first to prioritize safety paramount.” In hindsight, the S90’s engineering foreshadowed Volvo’s ongoing leadership in automotive safety.
If you want to buy Volvo S90 (1997-1998)
With an average owner rating of 4.4-4.6 out of 5 across platforms, the S90 is lauded for reliability—93% of owners would recommend it. Many examples have surpassed 200,000 miles with proper care, thanks to the durable inline-six engine and solid build.
Reliability highlights:
- The engine is “indestructible” with regular maintenance, often lasting 300,000+ miles.
- Quiet cabin and excellent fuel economy (20 city/27 highway mpg) make it economical for its class.
- Owners report minimal breakdowns, with one noting it “withstood the test of time.”
Common issues:
- Brake Vibrations: Rear brake rotors often warp, causing vibrations—address with resurfacing or replacement (cost: $200-400).
- No-Start Conditions: Faulty engine coolant temperature sensor can trigger check engine lights and starting issues (fix: $100-200 sensor replacement).
- Transmission Problems: Automatic transmissions may hesitate or fail due to wear; regular fluid changes help (potential rebuild: $2,000+).
- Ignition and Sensors: Spark plugs, mass air flow (MAF) sensors, and ignition modules can fail; clean/replace as needed.
- Cooling System: Aluminum engine prone to corrosion; change coolant every 3 years to prevent breakdowns.
- Thermostat Failures: Can cause overheating; replace preemptively (cost: $150-300).
Maintenance tips:
- Follow Volvo’s schedule: Oil changes every 5,000 miles, coolant/fluids every 3 years.
- Use OEM or high-quality parts; sources like IPD USA or FCP Euro offer lifetime warranties.
- Annual inspections for brakes and suspension—budget $500-1,000/year for an older example.
- For high-mileage cars, check for rust in underbody and wheel arches, common in salted-road regions.
- Join forums like Swedespeed or Volvo Club for DIY guides and part swaps.
Overall, ownership costs are moderate for a luxury classic, with RepairPal estimating $700-900 annually for repairs. Enthusiasts like those on Reddit report easy fixes, emphasizing proactive care.
Pros and cons
Pros:
- Exceptional build quality and longevity.
- Comfortable, quiet ride ideal for highways.
- Strong safety features and reliability.
- Good value in the used market ($3,000-7,000 today).
- Timeless design that ages gracefully.
Cons:
- Potential for expensive transmission or sensor repairs.
- Dated tech by 2025 standards (no Bluetooth, etc.).
- Fuel economy lags behind modern hybrids.
- Parts availability can vary; import from Europe if needed.
- Brake and vibration issues require vigilance.
Buying guide for today
If you’re eyeing a used S90, prioritize low-mileage examples (under 150,000 miles) with service records. Executive trims offer more luxury but check for extended-wheelbase-specific issues like rear suspension wear.
Inspect for rust, test the transmission for smooth shifts, and have a mechanic scan for sensor faults.
Current values range from $2,500 for high-mileage runners to $10,000+ for pristine collectors’ items. Platforms like Hemmings, eBay Motors, or Bring a Trailer are great for sourcing. For modifications, consider upgrading to modern tires (205/55R15) for better grip or adding aftermarket audio.
Compare to contemporaries: It’s more reliable than a Jaguar XJ but less sporty than a BMW 5-Series. For similar vibes today, look at the Lexus LS400.
